The life sciences industry is awash in data—but trapped in silos.
Clinical trials, electronic health records, patient registries, genomic datasets, literature repositories, adverse event logs—each represents a rich source of information. Yet, because they’re stored in isolated systems, inconsistently labeled, and structured in incompatible ways, deriving value from this data remains a formidable challenge.
Structured EMR tables. Unstructured clinical notes. Genomics. Literature. Adverse events. All of these data streams contain crucial biomedical signals, but they’re scattered across silos, speak different semantic languages, and evolve independently.
To create real value from this heterogeneity, we need to rethink how data is connected—not just collected.
At Modak, we believe the fusion of data lakes and knowledge graphs offers the architectural blueprint to do exactly that. This isn’t just about bringing data together—it’s about making relationships computable.
Why a Knowledge Graph for Life Sciences?
Traditional analytics rely on structured schemas and pre-defined relationships. But in life sciences, relationships are often latent, complex, and evolving.
Understanding how a compound targets a protein, how that protein regulates a pathway, which mutations modulate response, and what phenotypes emerge in real-world patients—requires a semantic model that can traverse these edges.
A knowledge graph provides this relational intelligence. It turns facts into networks. When applied to biomedical domains, it answers:
- How does a gene variant relate to a disease mechanism?
- Which compounds target a protein involved in a pathway?
- What’s the real-world efficacy of a therapy across patient subtypes?
These are not simple joins. They require contextual reasoning across domains—something that tabular models are ill-equipped to handle.
Knowledge graph provides a semantic layer that models real-world entities (drugs, diseases, genes, patients) and their multi-dimensional relationships. It enables:
- Context-aware search and recommendation
- Hypothesis generation for drug repurposing
- Patient stratification for precision medicine
- Risk signal detection in pharmacovigilance
But a graph is only as good as the data behind it. This is where the data lake comes in.
The Role of a Data Lake: Scale Without Sacrificing Variety
Modern life sciences organizations ingest terabytes of structured and unstructured data from diverse sources:
- HL7/FHIR clinical data
- CSVs from laboratory instruments
- PDFs of published research
- JSON APIs from public health databases
- Imaging data from DICOM
A data lake offers a central repository that can store all this heterogeneity in its native format, making it possible to separate storage from compute and semantics.
But turning a messy lake into a navigable graph demands more than just storage—it requires orchestration.

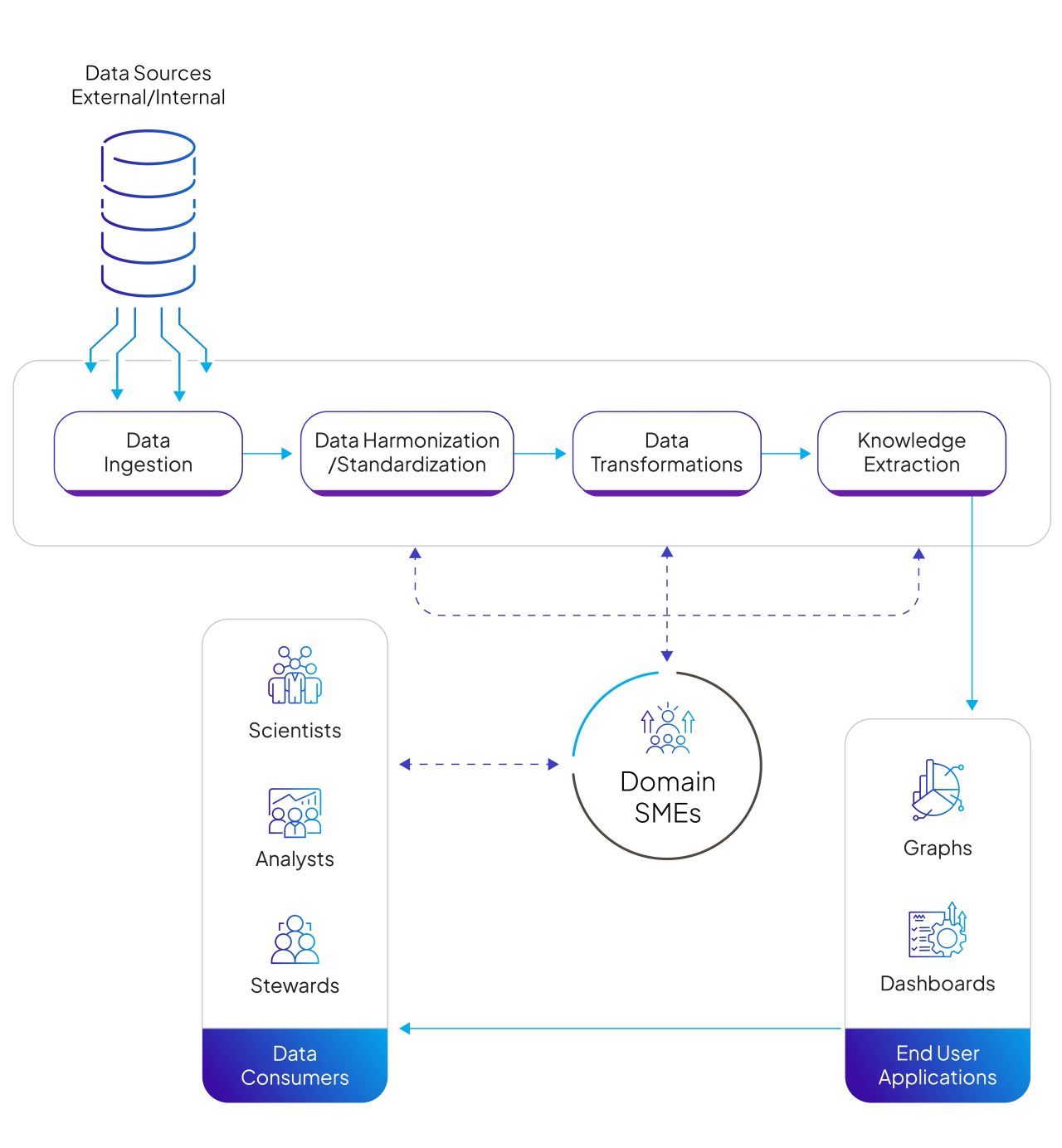

From Lake to Graph: A Blueprint
Transforming raw biomedical data into a knowledge graph is not a linear process—it’s a layered architectural journey that balances flexibility, scale, and semantic integrity. At Modak, we structure this transformation into five foundational stages. Each layer serves a distinct purpose, with its own set of challenges and value outcomes.
Here’s what each layer solves, and how it connects the broader vision.
1. Unified Metadata and Ontology Mapping
Without a shared semantic foundation, even the most comprehensive data lake becomes a fragmented ecosystem. Different departments, systems, and formats often describe the same entity in incompatible ways. This makes linking data across domains unreliable, especially when terminology is inconsistent or duplicated.
Metadata unification ensures that all downstream systems “speak the same language.” Ontology mapping allows machine understanding of concepts, categories, and relationships that go beyond column names and file formats.
A data lake may include “Metformin” from an EMR feed, “Glucophage” from a drug label dataset, and “CID:4091” from a chemical database. Without ontology-backed resolution (e.g., using RxNorm), these entries remain isolated. Metadata unification collapses them into one canonical drug entity, enabling consistent downstream analytics.
2. Data Ingestion and Harmonization
In life sciences, data comes in many formats, structures, and levels of quality. Raw ingestion without harmonization leads to poor quality, redundancy, and misalignment of timeframes and schemas. Harmonization is the bridge between raw data and trustworthy knowledge—it ensures consistency, alignment, and auditability.
It also enables downstream processes like feature extraction, standard query access, and version tracking, especially when multiple data sources must co-exist and evolve over time.
A VCF genomics file, an HL7 EMR export, and a PDF clinical trial report each carry critical information. Harmonization converts these into a normalized, query-ready structure—retaining fidelity while creating a foundation for integration.
3. Entity Resolution and Relationship Extraction
The core strength of a knowledge graph lies in how it connects entities, not just catalogs them. But real-world data often includes ambiguities: patients with slightly different identifiers, drugs referred by both brand and generic names, or symptoms described in free text. Without resolving entities and identifying relationships, graphs are flat and non-functional.
This layer introduces structure, disambiguation, and connectivity—turning passive records into actionable, interconnected data.
An adverse event logs “dizziness” and “nausea” linked to a dosage increase of a specific branded drug. Clinical trial records refer to the same compound by its generic name, while EHR data logs ICD-10 coded complaints. Using relationship extraction from unstructured text (e.g., pharmacovigilance narratives) and entity resolution across brand/generic drug mappings, we can trace a consistent safety signal emerging across disparate datasets—enabling earlier detection of risk trends that may otherwise be missed.
4. Graph Construction and Computation
Storing data as nodes and edges is not the goal. The value of a graph comes from how well it models domain logic and supports reasoning across complex relationships. Graph construction is about embedding structure, hierarchy, and meaning—creating a network that can be computed on.
This enables organizations to query paths, discover hidden clusters, detect anomalies, and surface previously unknown connections.
A graph may reveal that a specific genetic variant appears across multiple clinical trials linked to a set of biologically similar diseases. This insight is possible only when the graph encodes those trials, conditions, and gene relationships explicitly—and can compute paths between them. A well-constructed life sciences knowledge graph might reveal that a gene mutation (e.g., BRCA1) is linked across multiple patient records, clinical studies, and oncology drug trials. By computing paths across the graph, analysts can uncover that certain early-stage compounds—while not originally developed for this mutation—share downstream pathway targets with approved treatments. This forms the basis for scientifically grounded drug repurposing hypotheses or precision oncology trial design—rooted in evidence discovered through graph traversal rather than siloed exploration.
5. Business Logic Layer and Access APIs
A knowledge graph is only as valuable as its ability to be used by downstream stakeholders. Scientists, analysts, and business teams must be able to access insights without needing to understand graph query languages or backend systems. The final layer operationalizes the graph through APIs, visual interfaces, and governed access points.
This ensures that the graph can power both internal workflows and external applications—turning technical architecture into organizational utility.
In a post-market surveillance workflow, a pharmacovigilance analyst opens a dashboard that visualizes emerging relationships between drug lots, symptoms, and patient cohorts—all powered by the underlying graph. With no technical knowledge of Cypher or graph theory, they can filter reports by compound, drill down into symptom clusters, and flag anomalies. Meanwhile, an ML engineer builds a risk prediction model that programmatically pulls features from the graph via an API—connecting drug usage patterns with genetic markers and social determinants of health. This dual access model—visual for domain experts and programmatic for technical teams—ensures the graph becomes a living, cross-functional asset, not a black-box system.
From Connected Data to Computable Knowledge
When implemented with care, the fusion of a data lake and knowledge graph doesn’t just unify fragmented datasets—it changes the very way biomedical teams explore, reason, and decide.
The impact isn’t only technical—it’s cognitive:
- Time-to-insight is compressed as safety, clinical, and research teams reason across linked datasets
- New hypotheses emerge through graph-based proximity and path exploration
- Cohort discovery improves, as once-siloed EMR, genomics, and trial data become semantically aligned
But more importantly, this architecture reshapes how teams think:
- From managing datasets → to navigating relationships
- From aggregating data → to reasoning across context
- From isolated pipelines → to interconnected intelligence systems
Engineering Graph Intelligence with Neo4j
At Modak, we’ve brought this architecture to life by engineering enterprise-grade knowledge graphs using Neo4j’s native graph platform. Our teams have combined the flexibility of data lake environments with the semantic depth of graph databases—designing domain-specific data models, building high-performance ingestion and transformation pipelines, and operationalizing graph computation at scale.
Leveraging Neo4j’s capabilities, we’ve helped life sciences organizations transform scattered biomedical data into a structured, queryable knowledge network—enabling better decision support, faster discovery cycles, and more connected insight across R&D and commercial functions.
What Comes Next: Graph-Driven AI and Causal Reasoning
This foundation is not an endpoint—it’s a launchpad.
As life sciences organizations lean into AI for scientific exploration, this architecture unlocks new frontiers:
- LLM + Graph RAG
- Federated Graph Ecosystems
- Causal Graph Learning
In a field defined by complexity, regulation, and discovery, this is more than a technology stack—it’s a strategic capability.
For life sciences organizations navigating fragmented data ecosystems, the combination of a scalable data lake and a purpose-built knowledge graph isn’t just infrastructure. It’s how the future of biomedical reasoning will be built.
If you’re navigating the complexity of clinical, scientific, and real-world data and want to move from chaos to connected intelligence—We can help you operationalize it. Connect with us today.
